Stainless steel IP67 Series
  • HX173-FBIPC-02
  • HX173-FBIPC-02
  • HX173-FBIPC-02

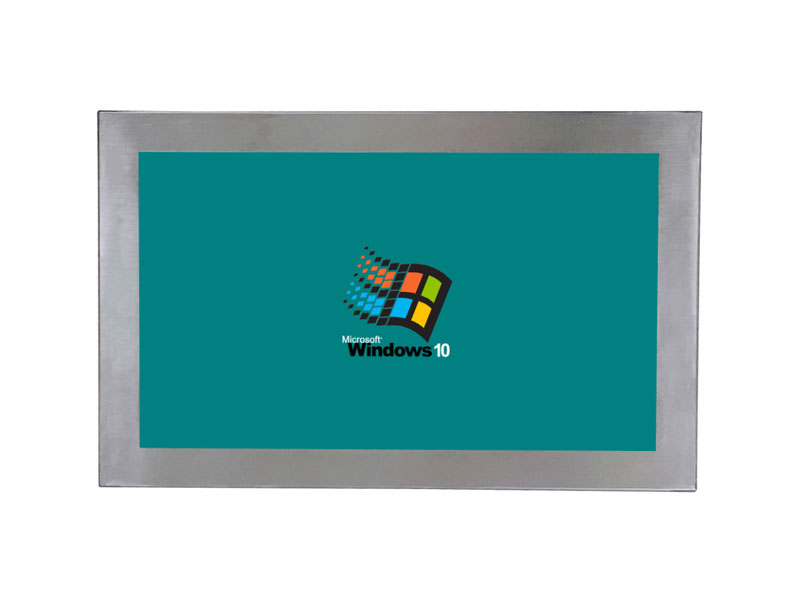

17.3inch  stainless steel case industry rugged ip67 tablet pc for Food & BeverageProcessing Facilities


17.3-inch 16:9 widescreen, 1920*1080 high-definition resolution, 350cd/㎡ brightness (1000cd/㎡ high brightness can be selected under outdoor sunlight), A+ perfect wide temperature industrial-grade LCD display;

Support power-on and start-up, 24/7 uninterrupted operation, backlight life up to 5W hours;

The whole machine adopts NEMA4/IP67 waterproof and dustproof design, and the interface sockets all use CNLINKO brand aviation plugs; the casing is made of SUS304 material, which is more durable, corrosion-resistant, shock-resistant and vibration-resistant;

Adopt Taiwan EETI scheme + industrial-grade resistive touch screen, good stability, high precision and not afraid of dust, water vapor, oil, etc., adapt to various harsh environments (non-touch/capacitive touch optional);

DC 12V power supply to meet industrial field applications (optional DC 24V/DC 9-36V wide voltage);

The panel (rear shell is optional) has OSD film buttons to help users adjust the LCD screen to the best use state optional;

Support various installation methods, wall-mounted installation or desktop installation;

Operating system: support Windows system, Linux system, Android system, etc.

Structural    parameters special performance Strong and durable, corrosion and wear    resistance, salt spray resistance, shock and vibration resistance
material color The whole machine is made of SUS304,    stainless steel (black can be sprayed)
weight Net weight: 5.8KG; Gross weight: 9.8KG    (including bracket weight)
Design Features The whole machine is IP67 dustproof and    waterproof, powered on, SUS304 metal shell
menu button The panel has OSD film buttons, which can    adjust the LCD screen to the best use state
display    parameters        size 17.3 inch 16:9 LCD screen
resolution 1920*1080
Brightness 350cd/㎡ (visible brightness under sunlight is optional 1000cd/㎡)
Contrast/Viewing Angle Contrast Ratio; 600:1(Typ.); Viewing    Angle: 80/80/60/80(Typ.)(CR≥10)(Left/Right/Up/Down)
touch    parameters        touch type EETI solution + industrial resistive    touch screen (full-fit capacitive touch screen is optional)
Material hardness ITO glass; hardness≧3H
click life ≧5 million times
touch force   ≦45g~250g
interface    parameters (air    plug) display interface VGA * 1, HDMI * 1 (optional DVI, BNC)
other interface DC IN fastening power terminal (aviation    plug), USB touch interface (aviation plug)
     Environmental    parameters Operating temperature -20℃~70℃
storage temperature -20℃~70℃
Relative humidity 10~90%, no condensation
       Dimensions physical dimension 446.0*278.2*68mm
installation size 100*100mm (VESA bracket wall-mounted    installation)
  DC power supply DC 12V power input (DC 24V/DC 9-36V)
installation    method   VESA bracket / cantilever mount (custom    bracket)
Shipping    accessories Standard 12V waterproof power supply + touch cable    + touch drive CD + touch pen + VGA cable
Warranty   12 month (longer warranty optional)    warranty
