HX-150IPC01

15 inch industrial flat panel touch screen all in one PC touch panel computer

Size:15"

Model:HX-150IPC01

HX-150IPC01 is a 15-inch industrial touch panel pc, it can be equipped with a J1900/I3/I5/I7 series processor, high-speed memory, low power fanless design, IP65 protection, a chassis-reinforced oxide material, corrosion resistant, anti-corrosion High and low temperature, meeting a variety of harsh industrial field applications for long periods of uninterrupted operation.

The tempered cover glass can be customized (standard: 3mm thickness ) according to customer needs, and the maximum thickness is 20mm, meeting the needs of ATM machines demand, also can increase the anti-peeping film,

HX-150IPC01 is widely used in machine vision, robotic arm control, AGV trolley, laser industry, rail transit, face recognition, environmental monitoring, medical, ERP/MES/WMS and other industries.

-----HXXK TOUCH HX-IPC01series
The material used for the external shell and the internal components can fully withstand the high and low temperature of any environment.
--------HXXK TOUCH HX-IPC01series
With ruggedized design provides high reliability and stability EMC and EMI are Certified in heavy-duty industries, suitable for multi-equipment environments, industrial automation, smart factory, edge computing, etc.
--------HXXK TOUCH HX-IPC01series
With IP65-rating dustproof and waterproof panels, this industrial touch screen computer with an intuitive human touch is suitable used in outdoor environments, Industry 4.0, medical & healthcare, building & home automation, industrial process control, houseware & logistics, and more.
--------HXXK TOUCH HX-IPC01series
Fully enclosed military-grade shell, dust-proof design,
It can adapt to various harsh working environments, and the fully enclosed design is more effective in dust-proof, oil-draining, waterproof, etc.
--------HXXK TOUCH HX-IPC01series

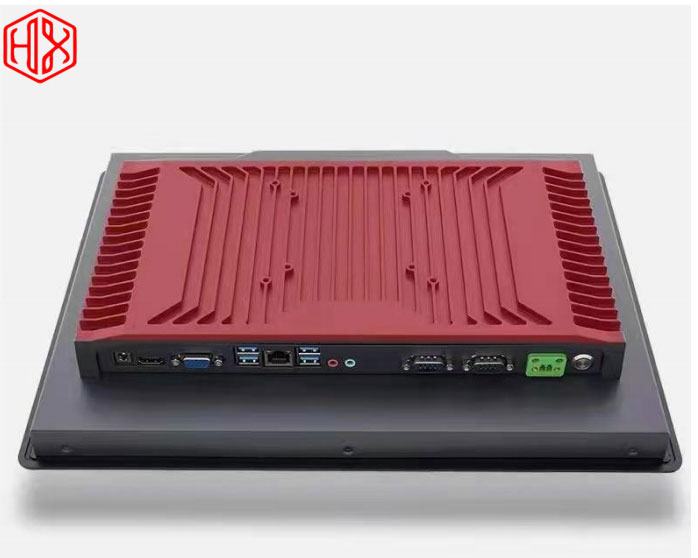

Efficient cooling system,
The military-grade heat dissipation system saves more than 5% energy than ordinary touch all-in-one machines. The aluminum alloy body is reasonably arranged with heating components to ensure that the heat can be effectively exported inside.

Configuration parameter	Processor	I3-3217u (Support J1900/I3/I5/I7 series processor)
	Heat dissipation method	Fanless cooling method
	RAM	Standard 8GB (Optional 16G)
	Hard disk	128G (SSD) (Optional 256G)
	I/O interface	USB: 2xUSB3.0 2xUSB2.0
		Serial port: 6xRS232 （DB9）
		Display interface: HDMI+VGA
		Optional: Bluetooth
		Optional: WIFI module
	The internet	2x Intel I211 Gigabit Ethernet (RJ-45)
Power supply	Power input	Standard 12V DC
Display	LCD screen	15"
	Resolution	1024*768
	Brightness	350nits（customizable ）
	Color value	16.7M
	Frame rate	60Hz
Touch screen	Touch mode	Capacitive touch screen
	Support touch points	Ten points
	Click life	50 million times
	structure type	G + G
System	operating system	Windows XP/ 7/8/10/ Linux/Ubuntu
Environment	Operating temperature	-10 ° C ~ 60 ° C
	storage temperature	-20 ° C ~ 70 ° C
	Airtight level	Panel IP65 protection rating
	Material	High strength aluminum alloy
Customized service	service	BIOS customization, boot screen LOGO custom / OEM labeling
Configuration parameter	power	Less than 50W

OEM/ODM Services for HXXK TOUCH Industrial Panel PCs

Screen Customization Service

1. High brightness screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspectives: standard 160°, 178° wide viewing angle customized.

4. Touch screen: capacitive touch screen PC, resistive touch screen

5. High-resolution screen: customize higher resolution than a standard LCD screen.

6. Screen size: support to the customized screen.

7. Others: dust-proof, water-proof, explosion-proof, anti-glare.

Other Customization Service

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -10~60°C, we can customize wide temp: -20~70°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Special materials: for special occasions.

7. IP grade: The industrial monitors can be customized fully sealed dust-proof and waterproof.
