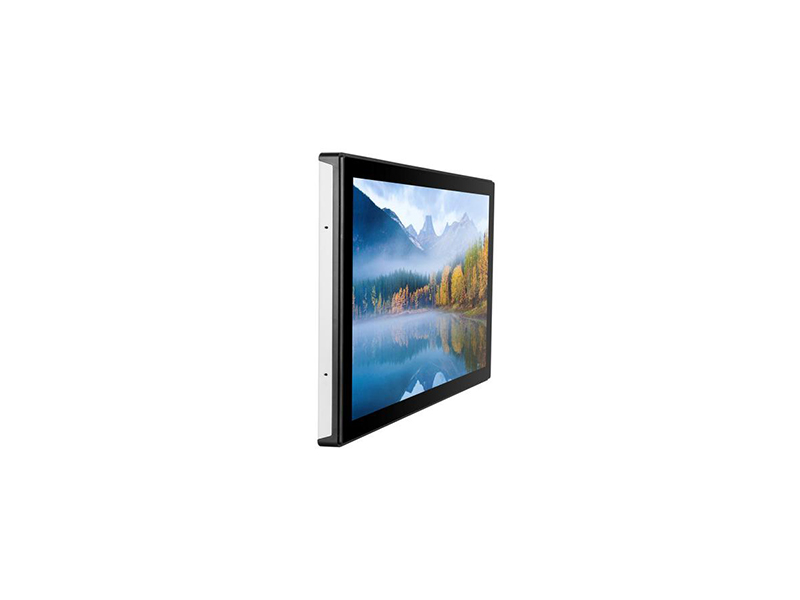

12.1inch industrial grade sunlight readable high brightness touch screen ATM LCD monitor
Size:12.1"
Model:HX-120F-HTC00
HX-120F-HTC00 is a 12.1-inch industrial touch monitor , with the ultra-thin front bezel, perfect for an embedded mount. Equipped with a high-performance processor, offers excellent computing for industrial site applications.
1. Application fields: POS, ATM, Self-service terminal, Interactive indoor&outdoor advertisement, Medical equipment, Gas station, Kiosk, Industrial automation, Production workshop, Monitoring system, Data mode control, etc.
2. Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.
3. This machine is of Windo(s) OS design, which could be connected to the internet and easy connection to wifi.
4. Remotely report system utilization and memory usage.
5. No dust, resistant to high temperature /humidity, Supports long-time working.
6. High quality of materials, motherboard, memory, storage, shell, WIFI&BT module, etc, full new and factory original packing.
7. Color for the metal outer frame is available in Black color, Shining-silver color, Color Is optional.
8. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba, etc, A Class 335 standard, full new and factory original packing screen.
9. Fixing method: Embedded, Standing, wall mounting, or ceiling fixing.
10. Support appearance, performance, and module customization.
APPLICABLE SCENARIO
Industry tablet with touch screen, widely used. Use for POS, ATM, Self-service terminal, Interactive indoor&outdoor advertisement, Medical equipment, Gas station, Kiosk, Industrial automation, Production workshop, Monitoring system, Data mode control, etc
| LCD screen | Size | 12.1" |
| Resolution | 1024*768 | |
| brightness | 500nits（customizable ） | |
| Color value | 16.2M | |
| Frame rate | 60Hz | |
| Viewing angle (U/D/L/R) | 89/89/89/89 | |
| Touch screen | Size / type | 12.1 ”/ capacitive touch screen |
| IC | ILI2511 | |
| Support touch points | Ten o'clock | |
| hardness | Surface strength> 6H | |
| Transmittance | > 87% | |
| Click life | 50 million times | |
| Resolution | 5V | |
| Response time | <10ms | |
| Interface form | USB | |
| structure type | G + G | |
| support system | WINDOWS XP / 7/8/10, Linux / Max / Android | |
| AD board | LVDS | LVDS 30PIN |
| VGA interface | 15Pin D-Sub VGA | |
| HDMI interface | HDMI | |
| DC-IN | DC12V, 4A external power adapter. Power hole 2.1 | |
| Operating temperature | -20 ℃ -70 ℃ | |
| storage temperature | -30 ℃ -80 ℃ | |
| OSD language | English Chinese German Japanese Russian Spanish Portuguese Russian | |
| OSD control | Auto Adjust, Menu, Left, Right, Exit, Power |
OEM/ODM Services for HXXK TOUCH Industrial Panel PCs
Screen Customization Service
1. High brightness screen: default 400cd/m2, support customization to 1500cd/m2.
2. Photosensitive head: customize the screen brightness automatically based on ambient light.
3. All perspectives: standard 160°, 178° wide viewing angle customized.
4. Touch screen: capacitive touch screen PC, resistive touch screen
5. High-resolution screen: customize higher resolution than a standard LCD screen.
6. Screen size: support to the customized screen.
7. Others: dust-proof, water-proof, explosion-proof, anti-glare.
Other Customization Service
1. Appearance customization: support appearance design, sample customization.
2. Working temperature: standard temp is -10~60°C, we can customize wide temp: -20~70°C.
3. LOGO customization.
4. System software customization: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Special materials: for special occasions.
7. IP grade: The industrial monitors can be customized fully sealed dust-proof and waterproof.
